Auxiliary Machinery

Bearing Chocks

These Bearing Chocks are rolling mill duty will be installed in between window of rolling mill stand. These Bearing Chocks are suitable for anti friction roller bearing. The bearing chocks are of EN – 8 with Fully Machined accurately the bearing sizes. The bearing chocks are complete with side cover, sleeves / Lumbering & chick nut.

Universal Spindles & Coupling

The universal couplings with universal spindle are used in bearing type rolling mill. These are install in between two mill stands used for couple both stand’s rolls to run the mill drive one to another.

The universal coupling is of forged material fully machined & spindle is machined En-8 material.

Gear Coupling

The Flexible type Gear Couplings are accommodates misalignment between two shafts and dampen vibration as the cause of that brake down will be reduced of mill & bearings. These Gear Couplings are consist two flagged type sleeves with internal cut out teeth, two outside toothed hubs with side cover and one set of nuts – bolts. The internal Hubs are of hardened forged material and outer sleeves are EN – 9 material. The teeth are tempered in well treatment system.

The Lubrication holes are well machined and oil seals are provided. The single tube sleeves type gear coupling & heavy duty non standards coupling are also available.

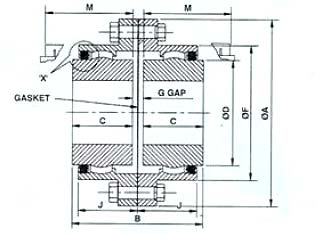

Coupling Size	Max. RPM	Min. Bore	ÆA	C	ÆD	ÆF	M	G	J	B
SFG-101	6300	20	170	55	65	110	65	5	49	115
SFG-102	5000	30	185	65	85	125	80	5	62	145
SFG-103	4000	40	220	75	105	150	105	5	78	175
SFG-104	3350	50	250	90	130	175	125	5	96	215
SFG-105	2800	60	305	100	155	215	140	10	106	230
SFG-106	2500	75	330	110	175	240	155	10	117	260
SFG-107	2100	90	365	120	205	275	175	10	134	290
SFG-108	1900	105	400	140	230	310	190	10	147	320
SFG-109	1700	125	440	150	250	340	205	10	156	340
SFG-110	1400	140	510	170	310	410	220	10	171	370
SFG-111	1250	160	570	200	350	470	240	10	192	410
SFG-112	1120	180	625	220	400	525	280	10	231	490
SFG-113	1000	200	705	240	440	570	310	15	242	535
SFG-114	900	220	760	260	500	640	330	15	266	575
SFG-115	800	250	810	280	540	690	370	15	305	655
SFG-116	710	300	930	290	625	775	423	20	335	720
SFG-117	630	375	1060	310	720	900	490	20	386	820
SFG-118	560	450	1160	350	810	1000	533	20	430	920
SFG-119	500	520	1320	390	910	1120	558	30	446	1000

Guiding Equipments

The Guiding equipments are usually used in Wire rod & TMT rolling mill plants. These Guide roller Boxes are of Stainless Steel Material fully machined accurately with central Parallel adjustment with help of steel bolting of rolls made up of High Chromium steel. The guide roller boxes are installed in front of rolling rolls with help of holder.

A wide range of Guide Roller Boxes are available. The Twisted Pipes and spares of these boxes are available.

Roll Backup Shear

Its is an Solution to Mis-rolls in Rolling Mill Area. Miss Rolls being a big Trouble for the TMT & Bar Mill Production Line. So we invent this Machine with name Roll Backup Shear. Its Avoid Piping in Rolled Ingot. Cut-Off length of piping area and re-guide the bar into the rolling mill trains. It's a very much successful and helpful machine. Its DECREASE MIS-ROLLS AND INCREASE PRODUCTION AND PROFITS. It's a Special Gift to TMT & Bar Rolling Mill Plants.
